| Product Name: | 100G QSFP | Usel: | FTTX |
|---|---|---|---|
| Max cable Distance: | 40km | Wavelength: | 1271nm/1291nm/1311nm/1331nm |
| Interface: | Duplex LC | Data transfer rate: | 100Gbps |
| Làm nổi bật: | 100gb SFP Optical Transceiver,100gb SFP Transceiver,100G QSFP28 LR4 |
||
High transfer rate SFP 100gb QSFP 100G LR4 1310nm 10km SFP Module LC Connector
Description
100G QSFP28 LR4 optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers. The laser drivers control 4-Distributed Feedback Laser (DFB) with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single –mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a PIN photo-detector and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and MDIO management interface.
Features
* Compliant with 100GBASE-LR4
* Support line rates from 103.125 Gbps to 111.81 Gbps
* Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF
* Digital Diagnostics Monitoring Interface
* Duplex LC optical receptacle
* No external reference clock
* Electrically hot-pluggable
* Compliant with QSFP28 MSA with LC connector
* Case operating temperature range:0°C to 70°C
* Power dissipation < 3.5 W
Specification
|
Form type:
|
QSFP+
|
Data rate:
|
100Gbps
|
|
Transmission Distance:
|
40KM
|
Wavelength:
|
1271nm/1291nm/1311nm/1331nm
|
|
Cable type:
|
SMF
|
Interface:
|
LC Duplex
|
|
DDM Support:
|
Yes
|
Operating temperature:
|
0°C to +70°C
|
|
Voltage:
|
3.3V
|
||
|
Regulatory Compliance:
|
CE,FCC,ROHS COMPLIANT
|
||

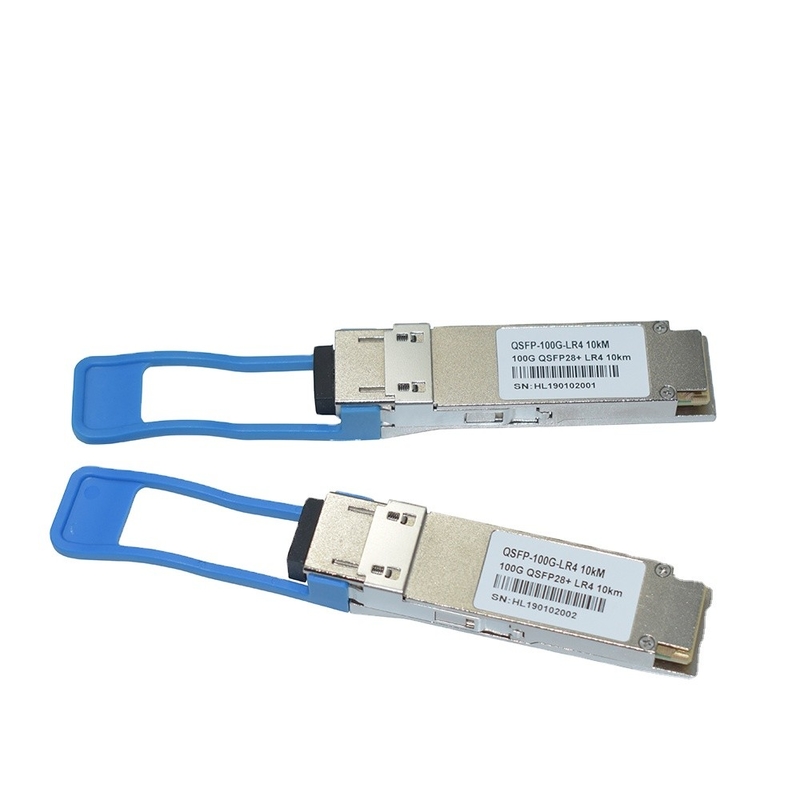

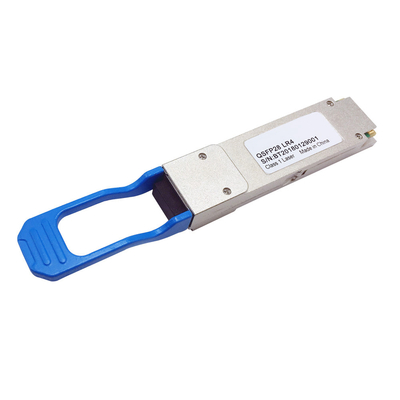

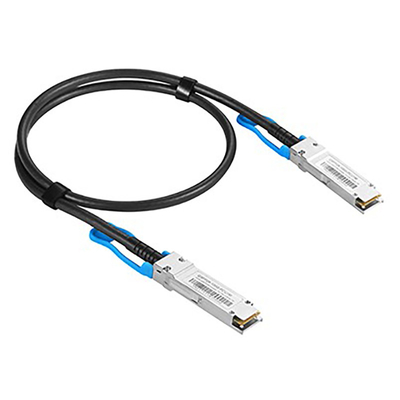

Product Photos
