| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| MPO Connector: | Female / Male | Cable color: | 12 Color |
| Cable Material: | LSZH / OFNP / PVC | Fiber type: | G652D / G657A /G657B |
| SC Connector Type: | APC /UPC | Cable diameter: | 0.9mm |
| Làm nổi bật: | Single Mode MPO MTP,0.9mm MPO MTP,SC APC UPC MPO cable |
||
12 Color SC APC UPC 0.9mm Single Mode MPO MTP
MPO-12 SC APC UPC 0.9mm Single mode cable MPO SM Fan-out Patch Cord 12 Fiber corlor
Description:
MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical
Features:
G652D, G.657A1, OM3, OM4
OD: 12 colors’ 0.9mm fiber cable
12*Fibre Ferrule MPO/MTP Male / Female s available in end A
LC , ST, FC, SC connectors are available in end B
Female (standard) and Male MPO/MTP Connectors
Polarity A (standard), B or C
Factory Terminated and Tested
Optional Pulling Element Available
LSZH or PVC cable jacket available
MPO/MTP Interface - MPO/MTP components feature superior optical and mechanical properties
Optimised Performance - Low loss MPO/MTP® Elite, discrete Premium (LC.SC mainly) connectors and OM4 fibre assures low insertion losses and power penalties in tight power budget high speed network environment
High Density - Multifibre connector and compact dimension of ruggedised MicroCable ease space in costly data centre environments
Rapid Deployment - Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes
Reliability - 100% tested - Combination of high quality components and manufacturing quality control guarantees product to the highest standard
Next Generation Network Proof - Emerging high speed protocol are going to use MPO/MTP® interface
Specifications:
| arameter | Unit | SM Standard | SM Low loss | MM Standard | MM Low loss | |
| Insertion loss | Typical | dB | 0.35 | 0.2 | 0.35 | 0.2 |
| Max | 0.75 | 0.35 | 0.65 | 0.35 | ||
| Return loss | dB | APC≥50 | ≥ | ≥35 | ||
| PC≥40 | ||||||
| Repeatability | dB | ≤0.1 | ||||
| Interchangeabilty | dB | ≤0.3(Connector Randomly) | ||||
| Durability | dB | ≤0.3 | ≤0.3(change 1000 matings) | |||
| Vibration | dB | ≤0.3(10~55Hz) | ||||
| Operating Temperature | ℃ | -25~+70 | ||||
Application:

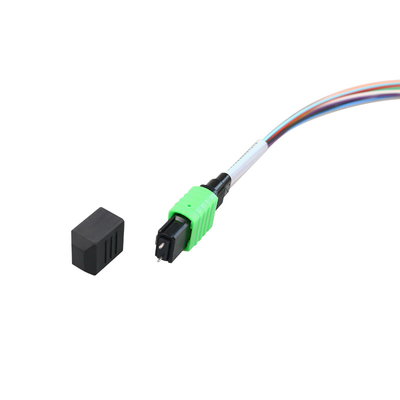

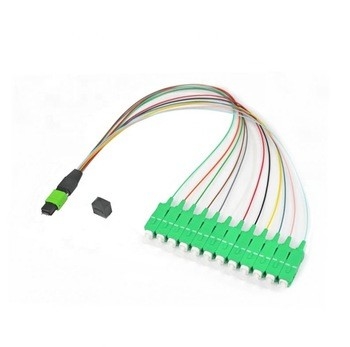

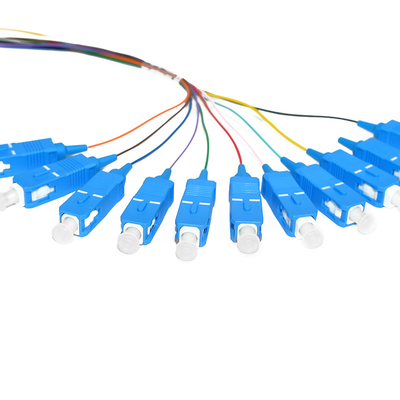

Drawing and Product Picture:
