| Fiber qty: | 96core | Patch penal: | 24*4 port |
|---|---|---|---|
| Height: | 1U | Material: | Cold Rolled Steel / ABS Plastic |
| Color: | Black | Application: | Network, Telecommunications |
| Adapter Type: | SC Simplex / LC Duplex / LC Quad | Aadpter color: | Beige / Blue / Green /Auqa / purple |
| Làm nổi bật: | 1U Drawer Fiber Patch Panel,96 Core MPO Cassette,1U Drawer MPO Cassette |
||

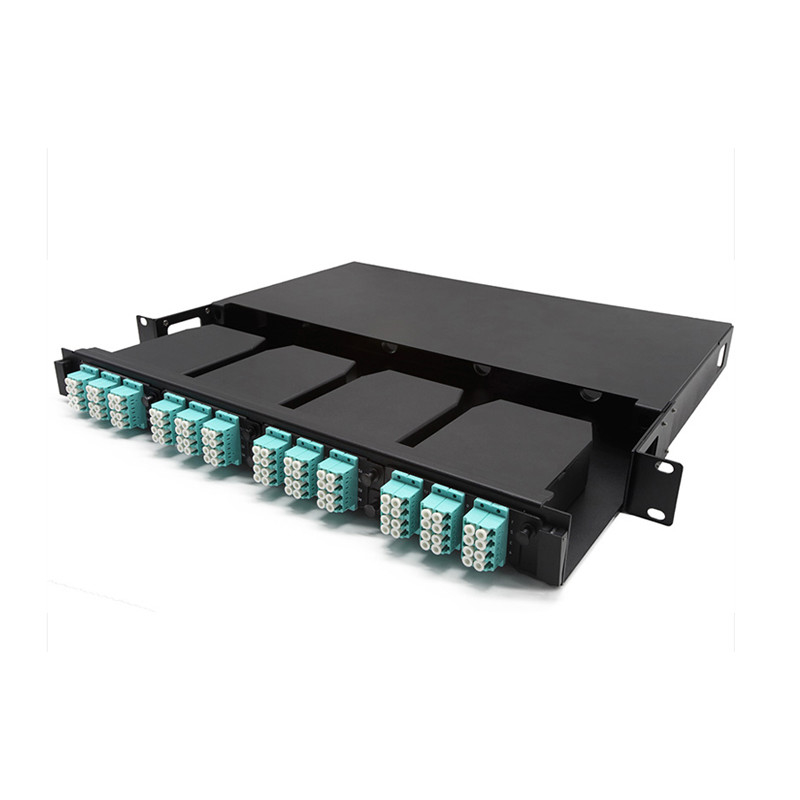

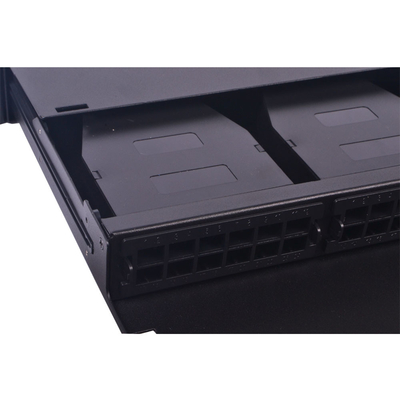

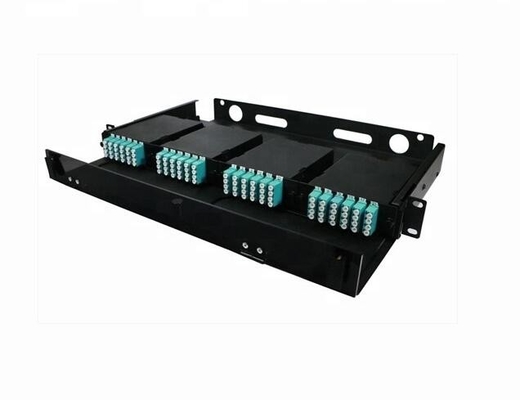

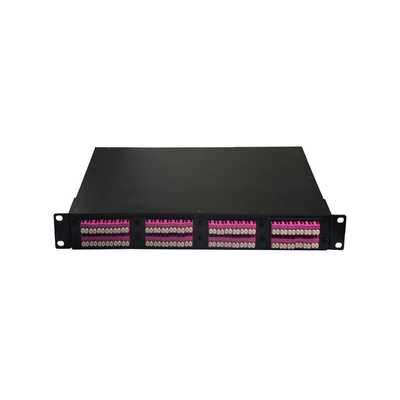

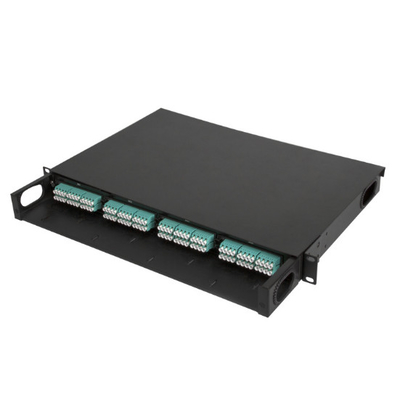

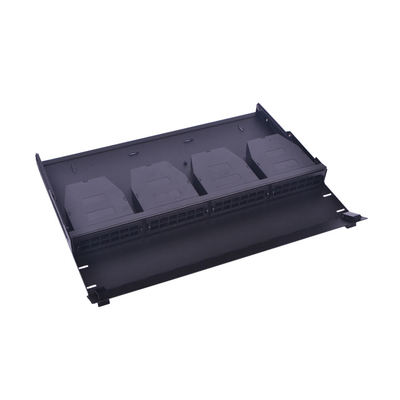

96 Core 1U Drawer Fiber Patch Panel MPO Cassette
96core 1U 19'' rack mount drawer type Fiber patch panel with MTP/MPO Cassette module
1. Description:

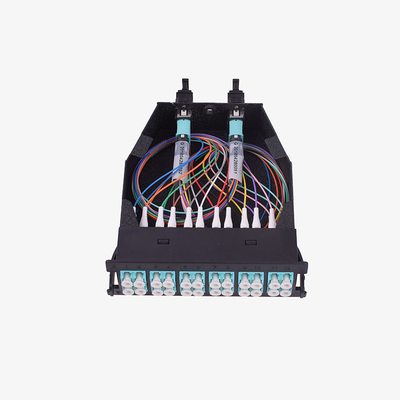

MPO Cassette Modules provide secure transition between MPO and LC or SC discrete connectors. They are used to interconnect MPO backbones with LC or SC patching.
Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. can be mounted in 1U or 2U 19" multislot chassis.
MPO Cassettes contain factory controlled and tested MPO-LC an-outs to deliver optical performance and reliability. Low loss MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.
2. Feature
1. Suitable for MPO/MTP application
2. High-density and small design; asy and fast installation
3. 12 and 24 fiber versions – 12 LC (Duplex) / SC (Simplex) optical parts
4. Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2)fiber.
5. Metallic shell with high strength protect the inner fibers effectively
6. Supports easy reconfiguration for moves, adds, and changes
3. Technical Parameter
Name: MPO Patch Panel with 4pcs MPO cassettes
Material: cold rolled steel
Structure: 1U, 19' Rack Mounted
Availabe adapter port: LC, SC
Material thickness:1.2mm
Capacity: 4pcs MPO Cassettes
high density cable wiring system
high efficiency cable wiring system
connection of trunk lines
high integrated equipment and devices
5. Parameter:
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
6.Product Show:
