850nm Multimode MMF OM3 OM2 AOC Active Optical Cable

850nm Multimode MMF OM3 OM2 AOC Active Optical Cable

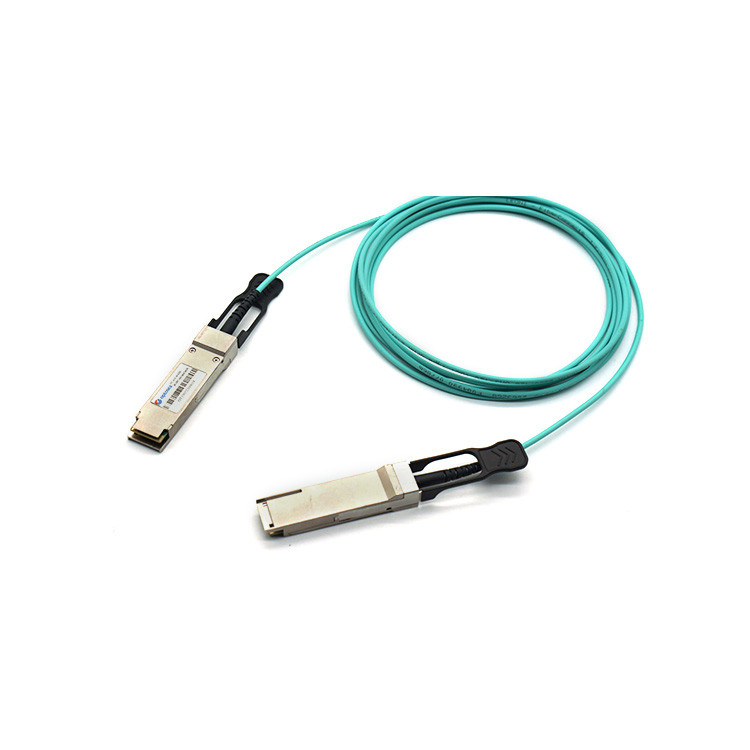

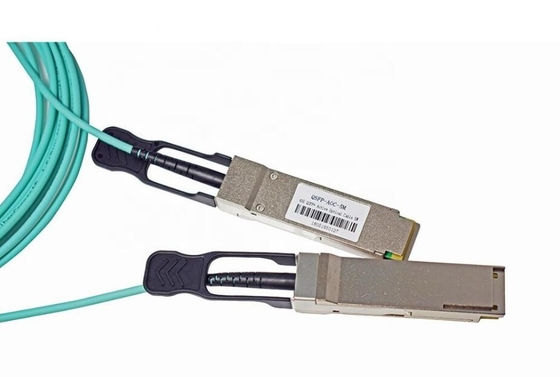

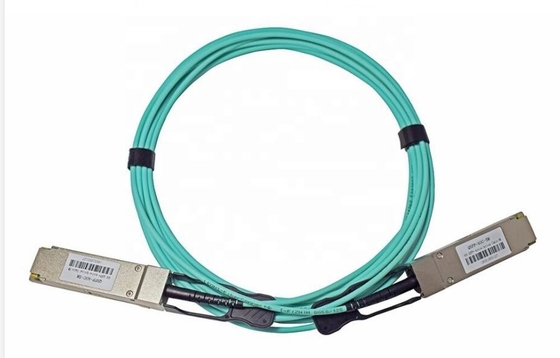

40G QSFP-QSFP AOC Active Optical Cable OM3 5M, 1M, 3M ,7M, multimode fiber, 850nm

General Description:

CY COM QSFP to QSFP Active Optical Cables are a high performance, low power consumption, long reach interconnect solution supporting InfiniBand QDR/DDR/SDR,1.25G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba.This QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. And it is one kind of parallel transceiver which provides increased port density and total system cost savings.

Features:

• Four-channel full-duplex active optical cable
• Transmission data rate up to 11.3Gbit/s per channe
• Reliable VCSEL array technology using multi-mode fibe
• Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100
• Low power consumption <1.5
• Operating case temperature 0°C to +70°
• 3.3V power supply voltag
• RoHS 6 complian
• Hot Pluggable QSFP form factor

Applications:

• 40 Gigabit Ethernet
• Fibre Channel Application
• InfiniBand QDR, SDR, DD
• High-performance computing cluster
• Servers, switches, storage and host card adapter
