Fixed Rack Mounted 1U 1X32 PLC Splitter FTTH Patch panel

Hình ảnh lớn : Fixed Rack Mounted 1U 1X32 PLC Splitter FTTH Patch panel

Thông tin chi tiết sản phẩm:

Place of Origin:	Shenzhen China
Hàng hiệu:	CY COM
Chứng nhận:	ISO9001:2015 ;ROSH

Thanh toán:

Minimum Order Quantity:	20pcs
Packaging Details:	Carton and Wooden
Delivery Time:	4-8 days
Payment Terms:	Western Union, T/T
Supply Ability:	2K/Month

Tiếp xúc

Chi tiết sản phẩm

Type:	Fixed Rack mounted	Apply port:	SC/FC/LC/ST
Capacity:	1x8 / 1x16 / 1x32	Hight:	1U
Material:	Metal Aluminum	Outer carto weight:	14.2/5pcs (1U)
Làm nổi bật:	PLC Splitter FTTH Patch panel , 1U FTTH Patch panel , 1U 1X32 PLC Splitter Patch panel

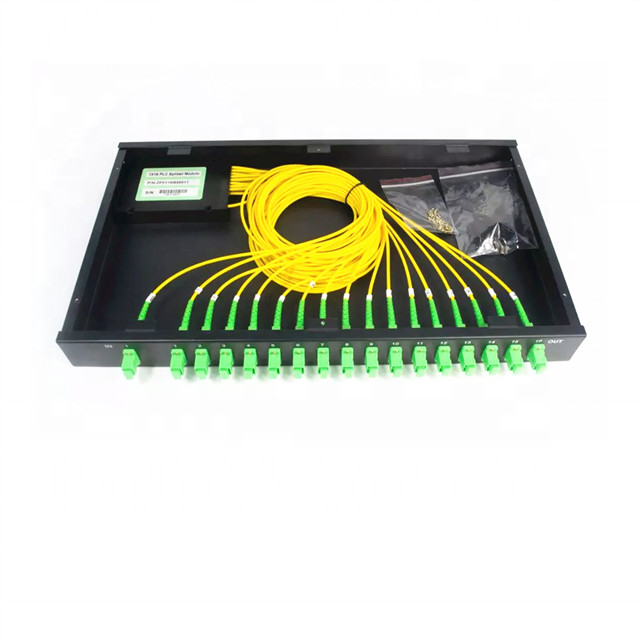

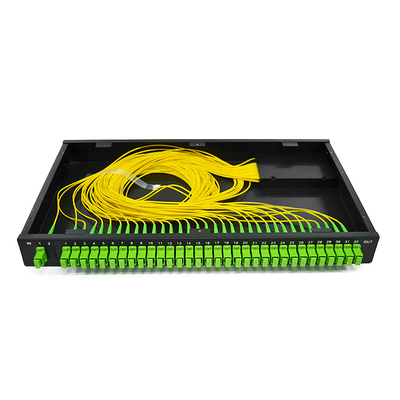

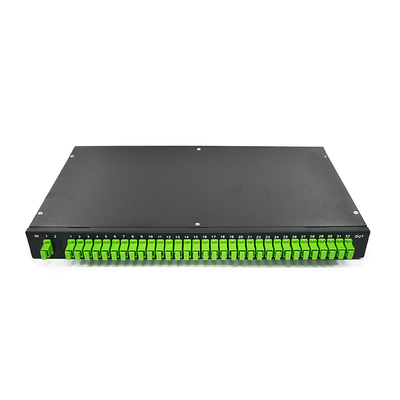

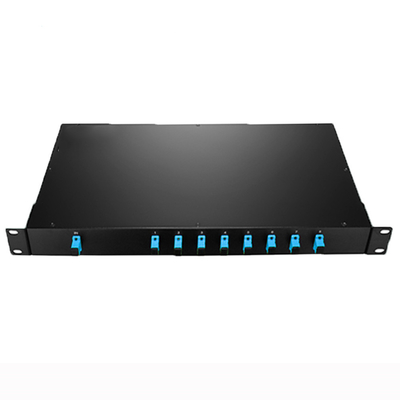

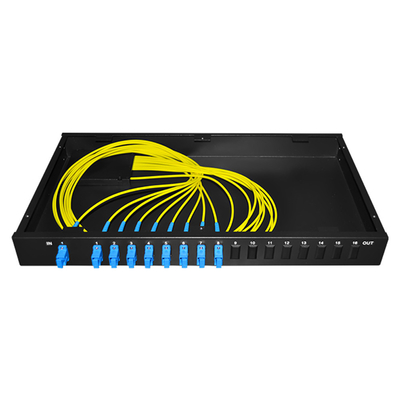

Fixed Rack Mounted 1U 1X32 PLC Splitter FTTH Patch panel

12-192core Slide drawer type 19'' standard structure Rack-mount Patch Panel With FC SC LC ST adaptor

Description:

The box is made of high quality cold rolled steel, and the surface is treated with Powder painting, painted well, is attractive and durable.
It is used for the termination of optic cable, 19” standard, rack mounted, for FC, SC, LC adaptors, convenience for use.
This PLC splitter box meet the National Standard of YD/T925-1997.
1-2 cable-in ports,1~32 cores fiber out ports. Protective caps available, increase the flexibility of using.

Feature:

Small package volume
easy for management and suitable for various occasions.
Single mode and multi mode available
1x2, 1x4 and 1x n customized splitters configuration available

Main technique index:

Size(mm):(L×W×H) 430*250*1U
Weight:2.4kg
Fiber radius of curvature:≥40mm
Added losses: no
Length of fiber coiled:≥1.6m
Maximum splitter capacity:SC maximum 1:32, FC maximum 2:16
Scope of temperature:-40°C~+60°C
Resistance to lateral pressure:500N
shock resistance:750N

Package:

Body: 1 set
Installation ears:1 pair

Application:

Widely used in FTTH access network
Telecommunication networks
CATV networks, LAN Network
Data communications networks
Local area networks
Active device termination

Specification:

Type		1*2	1*4	1*8	1*16	1*32	1*64	2*2	2*4	2*8	2*16	2*32	2*64
Item
Insertion loss (dB)	MAX	3.9	7.2	10.5	13.8	16.8	20.8	4.4	7.4	11	14.5	17.5	20.8
Uniformity (dB)	MAX	0.5	0.6	0.8	1	1.3	1.8	0.6	0.8	1	1.5	1.8	2
PDL (dB)	MAX	0.2			0.3		0.4	0.2		0.3			0.4
Operating Wavelength (nm)	/	1260~1650
Return loss (dB)	MIN	50(UPC),55(APC)
Directivity (dB)	MIN	55
Operating Temperature (°C)	/	-40°C~85 °C
Storage Temperature (°C)	/	-40°C~85 °C

Fixed Rack Mounted 1U 1X32 PLC Splitter FTTH Patch panel 0
