72 Core Fiber Optic IP65 FTTH Wall Mount Patch Panels

Hình ảnh lớn : 72 Core Fiber Optic IP65 FTTH Wall Mount Patch Panels

Thông tin chi tiết sản phẩm:

Place of Origin:	Shenzhen,China
Hàng hiệu:	CY COM
Chứng nhận:	ISO9001:2015, SGS,ROSH

Thanh toán:

Minimum Order Quantity:	10Pcs
Packaging Details:	Plastic foam and Cartons
Delivery Time:	3-8 days
Payment Terms:	T/T, Western Union
Supply Ability:	10K/Month

Tiếp xúc

Chi tiết sản phẩm

Material:	ABS/PBT	FTTH Socket connector:	SC FTTH SoFC ST Simplex / LC Duplex
Size:	488388140mm	Protection grade:	IP65
Color:	White / Gray	Packing:	1 pieces/carton
Application:	FTTCommunication Network System	Capacity of fiber:	72 core
Làm nổi bật:	FTTH Wall Mount Patch Panels , IP65 Wall Mount Patch Panels , 72 Core FTTH patch panel

72 Core Fiber Optic IP65 FTTH Wall Mount Patch Panels

72 core wall mount FTTH access fiber optic IP65 splitter box terminal box

Description:

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Specification:
Environmental reguirement:
Working temprature : -40ºC~+85ºC
Relative humidity : ≤85% (+30ºC)
Atmospheric pressure : 70Kpa~106Kpa
Main technical datasheet:
nsertion loss : ≤0.2db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insection and extraction : >1000 times
Thunder-proo technical datasheet:
The grounding device is isolated with the cabinet, isloation resistance is less than 2*104MΩ/500V(DC);
IR≥2*10 4 MΩ/500V(DC)
The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover; U≥3000V

Model and configuration:
Model NO:	Description:	Size(mm)	Max Capacity:
GFX-48/72/96	sub-fiber splitter box	ABC(mm) 488388140	SC 96 ports	LC 4 ports

Feature:

♦ Total enclosed structure.

♦ Clamping for feeder cable and drop cable, fiber splitting, splicing, fixation, storage, distribution...etc all in one.

♦ There is turned fiber storage wheel located on the base, it can keep dia. 3.00 drop cable in 30M.

♦ Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adaptor installation,

easy maintenance.

♦ Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.

♦ Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses
Application:

WAN
LAN
FTTX
Test Equipment
CATV and so on

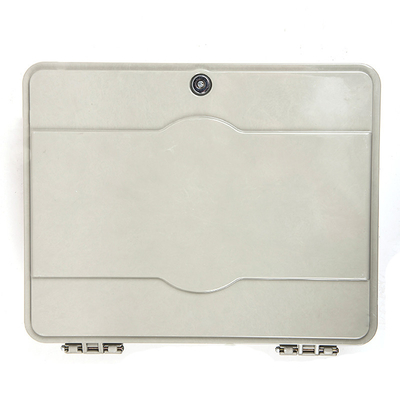

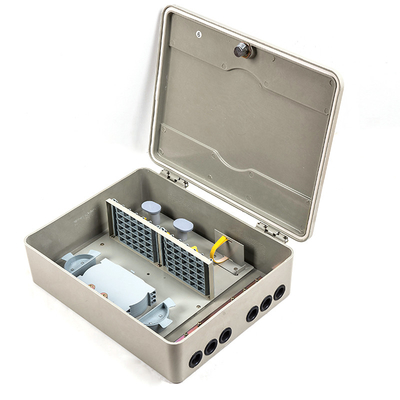

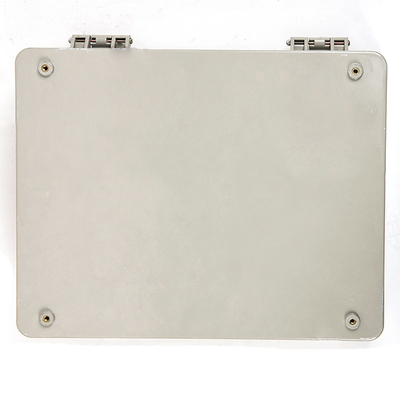

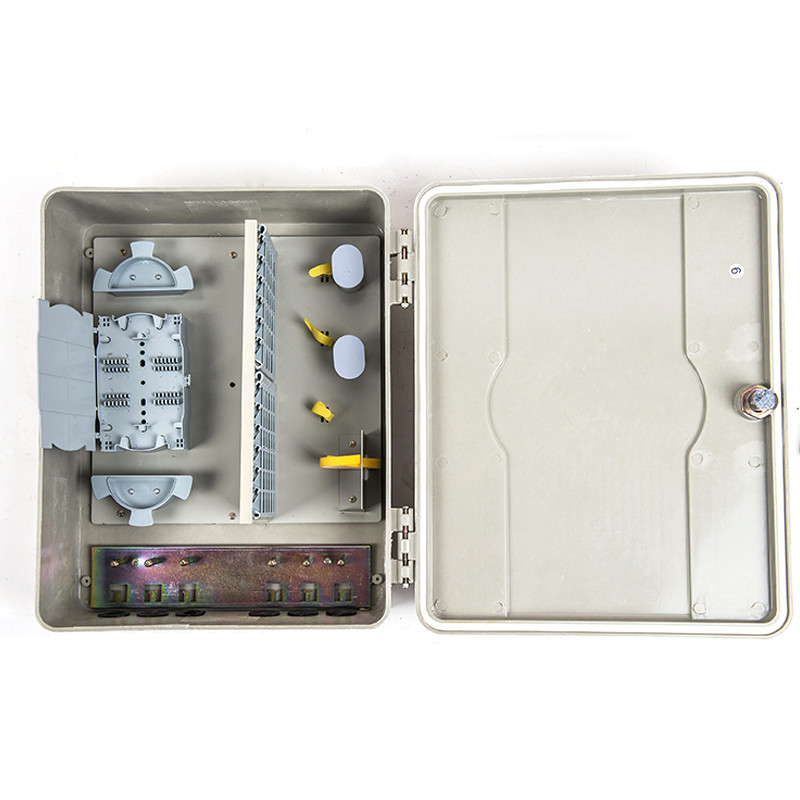

72 Core Fiber Optic IP65 FTTH Wall Mount Patch Panels 0

72 Core Fiber Optic IP65 FTTH Wall Mount Patch Panels 1

72 Core Fiber Optic IP65 FTTH Wall Mount Patch Panels 2
