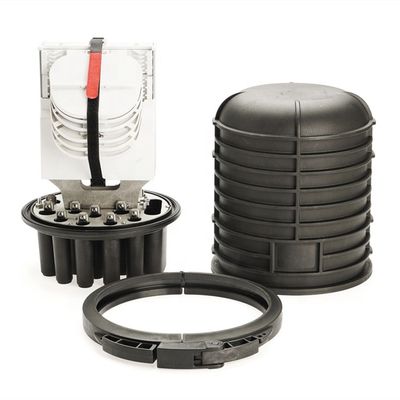

Wall Mounting 144 Core Optical Splice Fibre Dome Enclosure

Hình ảnh lớn : Wall Mounting 144 Core Optical Splice Fibre Dome Enclosure

Thông tin chi tiết sản phẩm:

Place of Origin:	Shenzhen ,China
Hàng hiệu:	CY COM
Chứng nhận:	ISO9001:2015,SGS,ROSH
Model Number:	CY-GPJ09

Thanh toán:

Minimum Order Quantity:	20pcs
Packaging Details:	Carton
Delivery Time:	5-8 days
Payment Terms:	Western Union, T/T
Supply Ability:	500K/ Month

Tiếp xúc

Chi tiết sản phẩm

Installation:	Aerial/ Wall Mounting/ Direct Burial	Dimension:	625270 (C); 500270 (B); 400*270 (A)
Sealing Type:	Heat Shrink, Mechanical Seal	Protection Class:	IP68
Cable Port:	1 uncut, 16 branch	Max qty of splice tray:	648 (C); 360 (B); 144 (A)
Tray Capacity:	24/ 12/ 6	Tray Count:	54 (C); 30/60 (B); 12/6(A)
Làm nổi bật:	Splice fibre dome enclosure , Optical fibre dome enclosure , 144 Core fibre dome enclosure

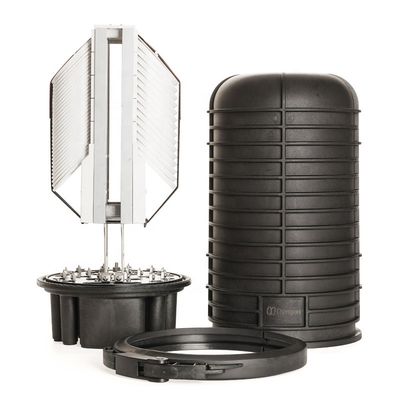

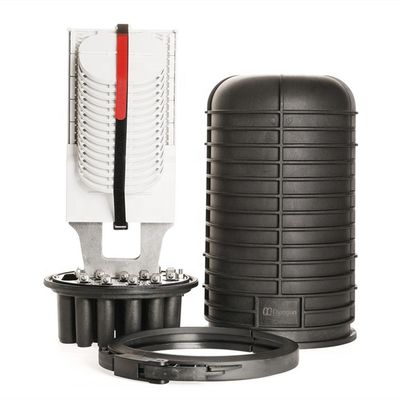

Wall Mounting 144 Core Optical Splice Fibre Dome Enclosure

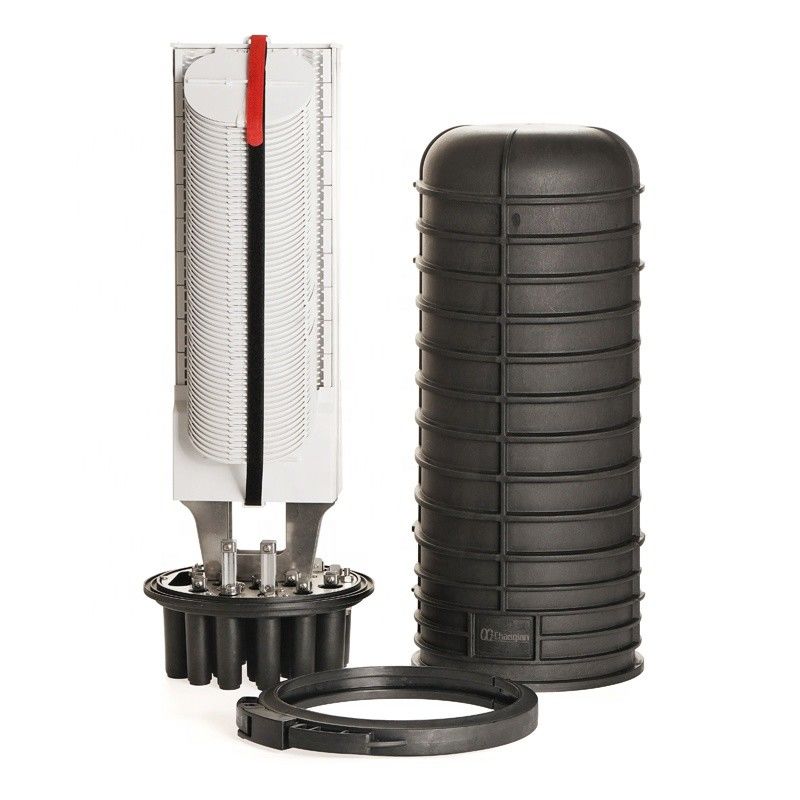

720 Core 360 Core 144 Core Dome Fiber Optical Splice Closure Dome Enclosure

Introduction

Chaoqian GPJ09-5817 series dome closures feature durable housing, 16 branch ports, and 1 uncut port. The fusion splice capacity range is 144F~648F, with 24F/ 12F/ 6F tray capacity. The splice trays for the closure are interchangeable with PLC trays which are applicable to 1*1:8 or 2*1:4 Mini PLC Mini splitters. Both fiber fusion and fiber splitting are feasible. Employing the heat shrink as well as mechanical seal, the protection grade of this series can reach IP68.

Features

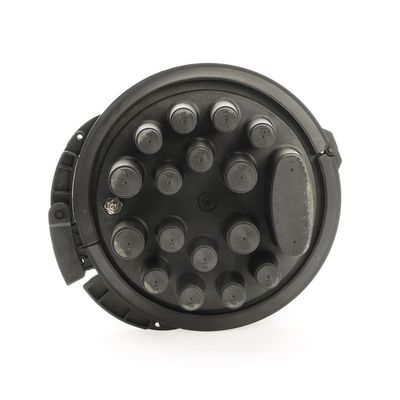

● Ports: 1 uncut(Ф10-25mm), 16 branch(Ф14-22mm,Ф8-16mm)

● Capacity: 648 (C), 360 (B), 144 (A)

● Seal: Heat Shrink, Mechanical Seal

● Waterproof: IP68

● Material: PP+GF

● Applications: aerial, wall mounting, direct burial

Packaging Details

Net Weight :

9.5 kg- 12 kg (C);

7.5 kg- 8.0 kg (B);

5.5 kg- 6.2 kg (A)

Inner Carton (mm):
775x315x285 (1PCS) (C)
650x315x285 (1PCS) (B)
550*315*285 (1PCS) (A)

Specifications

Model No.	GPJ09-5817-C
Style	Dome/ Vertical
Dimensions (H*D)	625 × Φ270
Material	PP+GF
Sealing Type	Heat Shrink, Mechanical Seal
Protection Grade	IP68
Cable Ports	Uncut	Oval	1	Φ10 - Φ25 mm
	Branch	Round	4	Φ14 - Φ22 mm
			12	Φ8 - Φ16 mm
Fiber Splice Capacity	648
Tray Capacity	12
Tray Count	54
PLC Splitter	1:4 Mini		2
	1:8 Mini		1
Weight (kg)	9.5 - 12.0
Application	Aerial/ Wall Mounting/ Direct Burial
Packing Type	Inner Carton		775×315×285 mm (1 PCS)
	Outer Carton		-

Model No.	GPJ09-5817-B
Style	Dome/ Vertical
Dimensions (H*D)	500 × Φ270
Material	PP+GF
Sealing Type	Heat Shrink, Mechanical Seal
Protection Grade	IP68
Cable Ports	Uncut	Oval	1	Φ10 - Φ25 mm
	Branch	Round	4	Φ14 - Φ22 mm
			12	Φ8 - Φ16 mm
Fiber Splice Capacity	360
Tray Capacity	12/ 6
Tray Count	30/ 60
PLC Splitter	1:4 Mini		2
	1:8 Mini		1
Weight (kg)	7.5 - 8.0
Application	Aerial/ Wall Mounting/ Direct Burial
Packing Type	Inner Carton		650×315×285 mm (1 PCS)
	Outer Carton		-

Model No.	GPJ09-5817-A
Style	Dome/ Vertical
Dimensions (H*D)	400 × Φ270
Material	PP+GF
Sealing Type	Heat Shrink, Mechanical Seal
Protection Grade	IP68
Cable Ports	Uncut	Oval	1	Φ10 - Φ25 mm
	Branch	Round	4	Φ14 - Φ22 mm
			12	Φ8 - Φ16 mm
Fiber Splice Capacity	144
Tray Capacity	12/ 24
Tray Count	12/ 6
PLC Splitter	1:4 Mini		2
	1:8 Mini		1
Weight (kg)	5.5 - 6.2
Application	Aerial/ Wall Mounting/ Direct Burial
Packing Type	Inner Carton		550×315×285 mm (1 PCS)
	Outer Carton		-

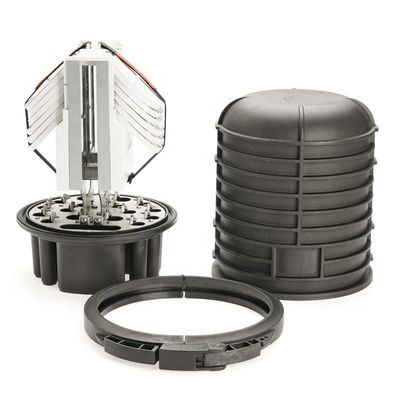

Wall Mounting 144 Core Optical Splice Fibre Dome Enclosure 0

Package &Delivery
