Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Tên sản phẩm: | Dây vá bằng sợi quang MPO | Màu cáp: | Vàng / Aqua |
|---|---|---|---|
| Hình dạng cáp: | Tròn / ruy băng | Loại kết nối: | Nữ /nam |
| Mater Cater: | LSZH / PVC | phân cực: | A/b/c |
| Làm nổi bật: | OM4 MTP Breakout Cable,OFNP MTP Fiber Optic Patch Cord,APC MTP Fiber Jumper |
||

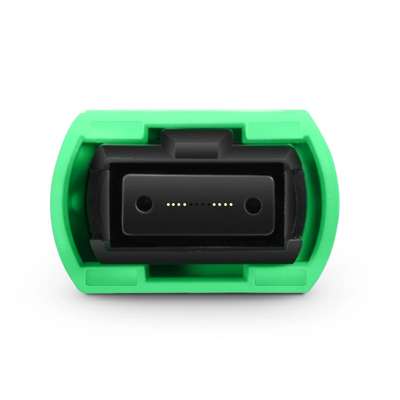

The MTP®-12 to 2 x MTP®-4 APC (Female) OM4 cable is a multimode, 4-channel-to-two 2-channel splitter fiber cable designed for high-performance data center applications. This innovative solution uses 8 active fibers for data transmission and 4 inactive fibers as strength members. The APC end features an 8-degree polished angle that effectively deflects internal optical back reflections, preventing signal distortion and ensuring superior signal quality.
This breakout cable enables efficient connectivity between 800G NVIDIA InfiniBand twin-port OSFP transceivers and four 400G NVIDIA InfiniBand OSFP/QSFP112 transceivers in high-speed data center fiber links. When used with 400Gb/s transceivers, only two channels are activated, creating a 200Gb/s transceiver configuration. Compared to traditional breakout cassettes, MTP® breakout cables offer superior cost-effectiveness and lower signal loss.
| Connector A | US Conec MTP® Elite Female (Non-Pinned) |
|---|---|
| Connector B | US Conec MTP® Elite Female (Non-Pinned) |
| Fiber Mode | OM4 50/125μm |
| Wavelength | 850/1300nm |
| 400G Ethernet Distance | 50/100m at 850nm |
| 800G Ethernet Distance | 50m at 850nm |
| Glass Fiber | Bend Insensitive Fiber |
| Polish Type | APC to APC |
| Insertion Loss | ≤0.35dB (0.15dB Typ.) |
| Return Loss | ≥45dB |
| Attenuation at 850nm | ≤2.3dB/km |
| Attenuation at 1300nm | ≤0.6dB/km |
| Cable Jacket | Plenum (OFNP) |
| Minimum Bend Radius | 7.5mm |
| Cable Outside Diameter (OD) | 3.0mm |
| Trunk Length | 0.2m |
| Installation Tensile Load | 66N |
| Tensile Strength | 60/120N (Long/Short Term) |
| Operating Temperature | -10 to 60°C (14 to 140℉) |
| Storage Temperature | -10 to 70°C (14 to 158℉) |
